Lateral Auto Loader
This machine automatically arranges gyoza dumplings onto trays or vats.
By linking it with the Gyoza Dumpling Machine (TX-16 or TX-24), it significantly reduces labor required for the subsequent end-line processes.
By linking it with the Gyoza Dumpling Machine (TX-16 or TX-24), it significantly reduces labor required for the subsequent end-line processes.
- Auto Loading
- Trays and Vats
- Reduce manpower
- Mechanical Synchronization

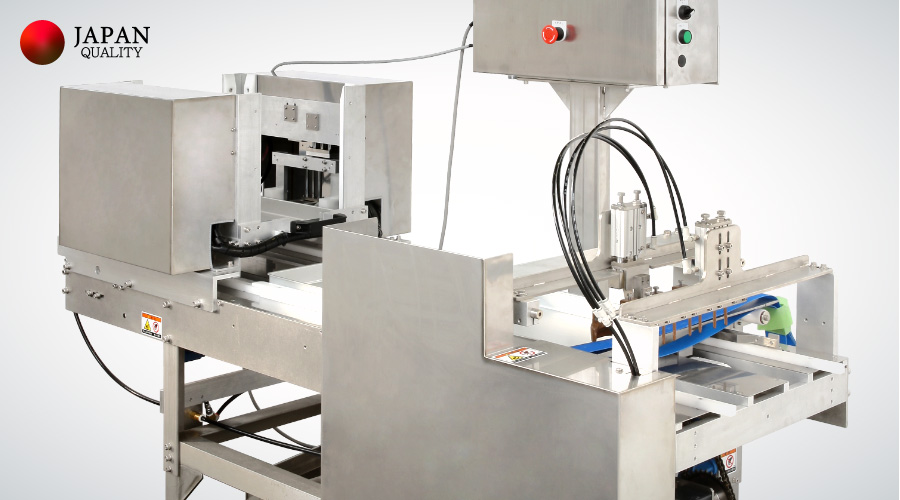

Lateral Auto Loader

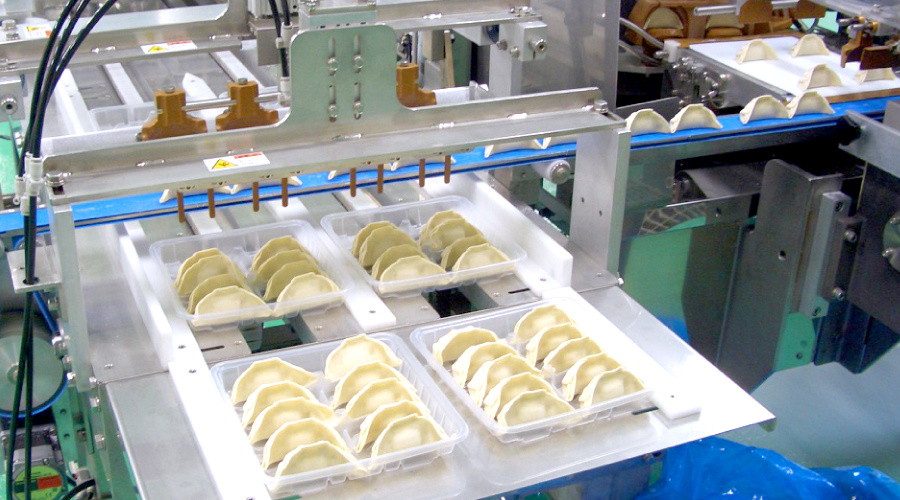

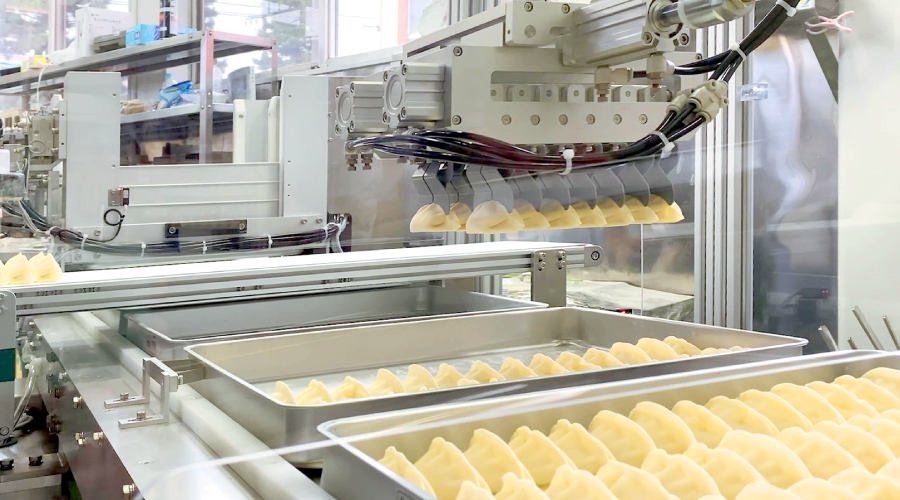

The discharged gyozas dumplings are automatically alligned on trays or vats.

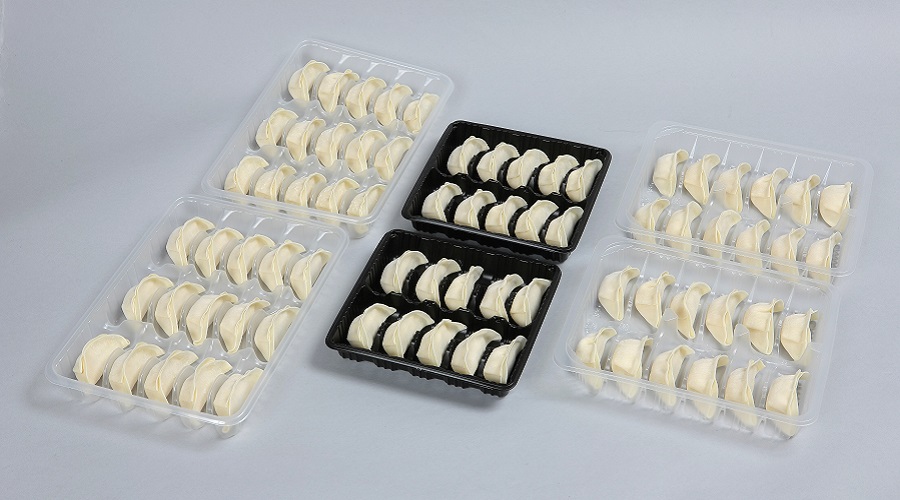

Automatic alignment onto various sized plastic trays is also possible (with certain conditions).

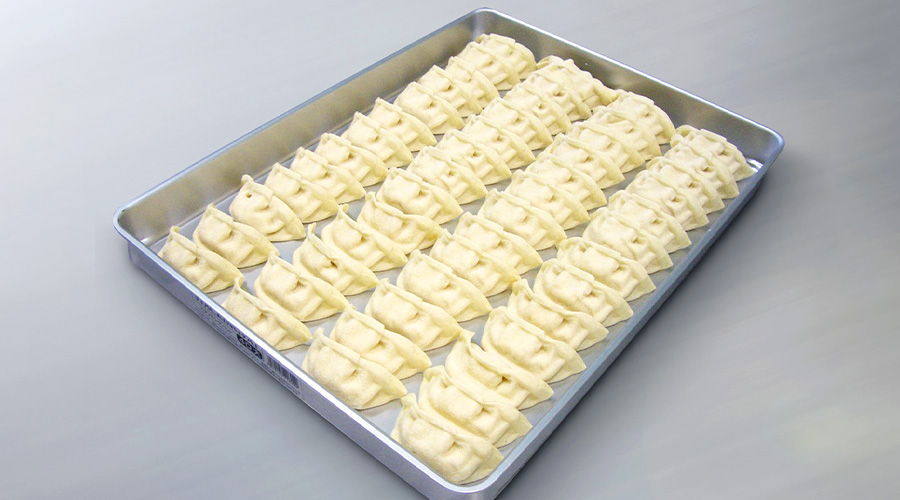

Standard aluminum vats (for direct freezing)
Steaming trays with holes is also possible.
Product Information
Outline
The "Lateral Auto Loader AL-TF / AL-VF" further enhances the labor-saving efficiency of the gyoza dumpling production line.
The gyoza dumplings discharged by the gyoza machine TX-16 is sent horizontally across to the Auto Loader, which gently catches the gyoza and places it onto the tray or vat. The movement synchronization is mechanically controlled, minimizing the risk of electrical component failures. The machine is built to order, allowing it to accommodate your specific choice of rows and columns on the tray, making it highly adaptable to various production needs.
Additionally, by using the optional "Auto Tray Feeder TF", the supply of trays and vats can also be automated.
Features
- Productivity Increase Achieves high productivity and labor cost reduction.
- Built-to-Order Built-to-order to meet the varying demands and needs.
- Proven Result A trusted and proven track records in many factories across Japan.
- Mechanical Synchronization Ensures excellent maintenance and reliability
Specifications
| Product Name | Lateral Auto Loader |
|---|---|
| Model | AL-TF or AL-VF |
| Columns on Tray | 4 to 8 columns can be chosen |
| Air Supply | Separately required |
| Dimensions (Auto Loader) | 577mm×670mm×450mm (may vary depending on spec) |
| Dimensions (Auto Feeder) | 1755mm×1020mm×1720mm (may vary depending on spec) |
| Power | 3 Phase 200V, 1.2kW (may vary depending on spec) (Overseas voltage is also possible) |
| Weight | 310kg |
Video
NEWRobot-Arm Auto-Loader
An advanced solution using a highly reliable robotic arm.
This machine connects to the gyoza dumpling machine and automates arranging of gyoza in trays or other containers.
This machine connects to the gyoza dumpling machine and automates arranging of gyoza in trays or other containers.
- Automatic Loading
- Compatible with Trays & Vats
- Labor Saving
- Program-Controlled

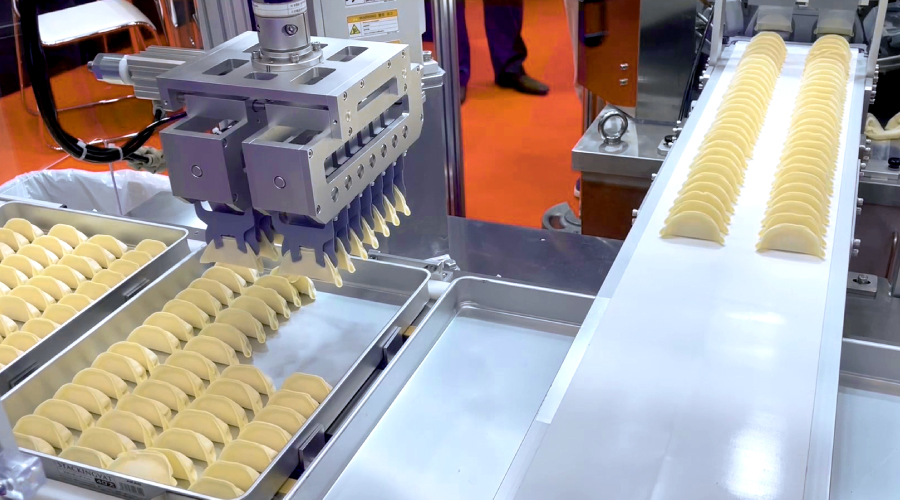

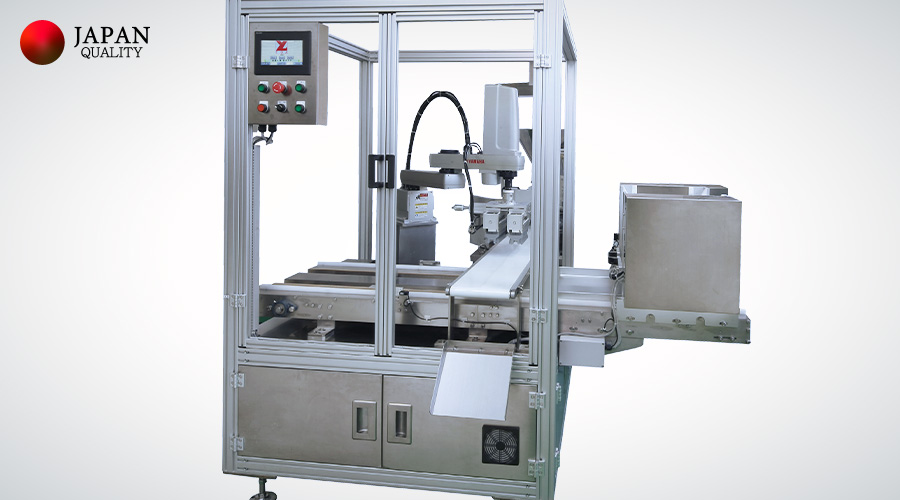

Robot-Arm Auto-Loader AL-R
A highly reliable Robotic Arm is adopted.
You can choose the number of rows to line-up.
Automatic alignment in various plastic trays is possible.
Enables automatic alignment in standard aluminum vats.
Product Information
Product Guideline
The "Robot-Arm Auto-Loader" realizes a highly labor-saving solution in the gyoza dumpling production process, precisely and automatically aligning gyoza/dumplings in trays or bins.
Additionally, by using the optional "Auto Tray Feeder TF", the supply of trays and vats can also be automated.
Additionally, by using the optional "Auto Tray Feeder TF", the supply of trays and vats can also be automated.
Features
- Improved Productivity Achieves high productivity and labor cost reductions.
- Custom-made Custom-designed to match your tray size (conditions apply).
- Versatile Compatibility Supports multiple trays and bins with attachment replacement (conditions apply).
- Customizable Alignment No. of rows can be chosen between 2 to 10 rows.
- Programmable System Independent robot control allows for step-up retrofitting to TX-16. *
Manufacturer training is required for use.
Specifications
| Product Name | Robot-Arm Auto-Loader |
|---|---|
| Model | AL-R |
| No. of Colulmns | Columns can be chosen between 2 to 10 |
| Air Supply | Separately required |
| Dimensions | 2660mm x 1608mm x 1857mm |
| Power | 3 Phase 200V, 2.1kW (Overseas voltage is also possible) |
| Robot-Arm | manufactured by Yamaha Motors |
| Weight | 550kg |
動画紹介
Shuttle Auto-Loader
Enables switching from vertical transport (discharge from the gyoza dumpling machine) to horizontal transport (onto a mesh conveyor, etc), enabling a seamless transportation of gyoza/dumplings from production machine into the IQF or steaming lines.
- Auto Alignement
- 4 to 12 Rows
- Retro-fitting

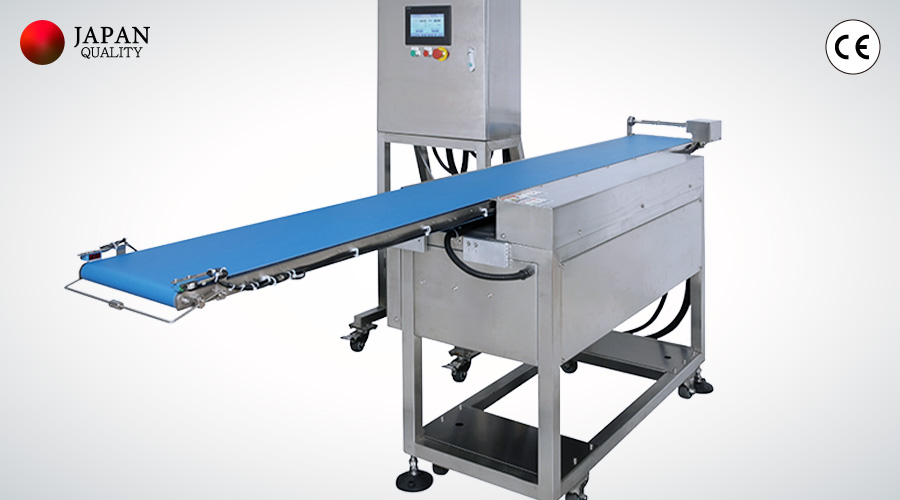

Shuttle Auto-Loader AL-SC
Suitable for transportof gyoza/dumplings in a steaming or freezing production line

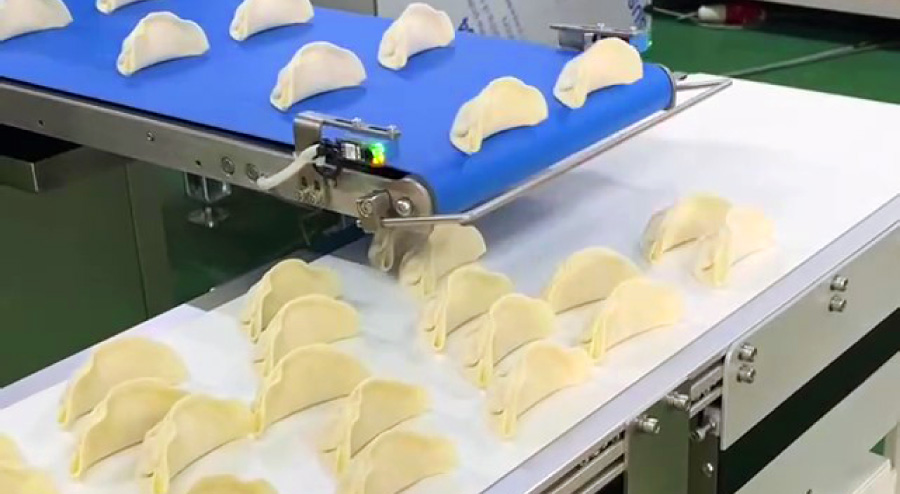

Smooth switching from vertical to horizontal transport.
Product Information
Outline

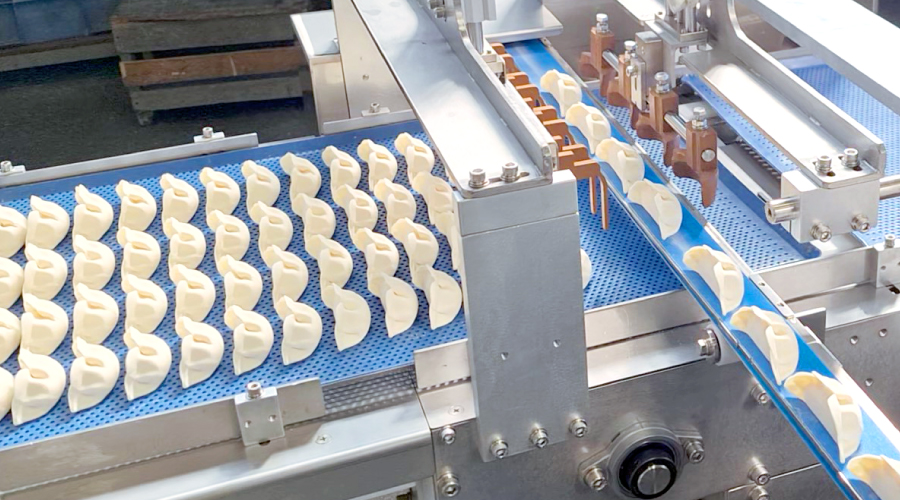

The "Shuttle Auto-Loader" is a high-performance system that connects to a fully automatic gyoza machine (TX-16 or TX-24), aligning discharged gyoza at equal intervals onto a mesh conveyor. By automatically switching from vertical to horizontal transport, it eliminates complex manual work and maximizes overall production line productivity.
Features
- Improved Productivity Achieves high productivity and labor cost reduction.
- IQF and Steaming Line Ideal for tunnel freezing and/or spiral freezing lines.
- Customizable Alignment No. of rows can be chosen between4 to 12 rows.
- Retro-Fitting Retrofitting allows for later installation of this machinery to TX-16, to realize step-up from manual picking to automation.
Specifications
| Product Name | Shuttle Auto-Loader |
|---|---|
| Model | AL-SC |
| No. of Rows | 4 to 12 Rows |
| Dimensions | 2200mm × 500mm × 830mm |
| Dimensions of Control Box | 700mm × 500mm × 1330mm |
| Power | 1 Phase 220V, 1.0kW (Overseas voltage is also possible) |
| Weight | 210kg |
