Compact Dispenser（Volumetric discharge system）
The Compact Dispenser reliably dispenses precise quantities of various ingredients, including meat, fish, and paste fillings. It is the ideal machinery to assist in efficient mass production in your kitchen.
- 2,000 pcs/hr
- Fixed Volumetric Discharge
- Compact Size
Compact design suitable for kitchen use.
The optional foot pedal makes operation easier.

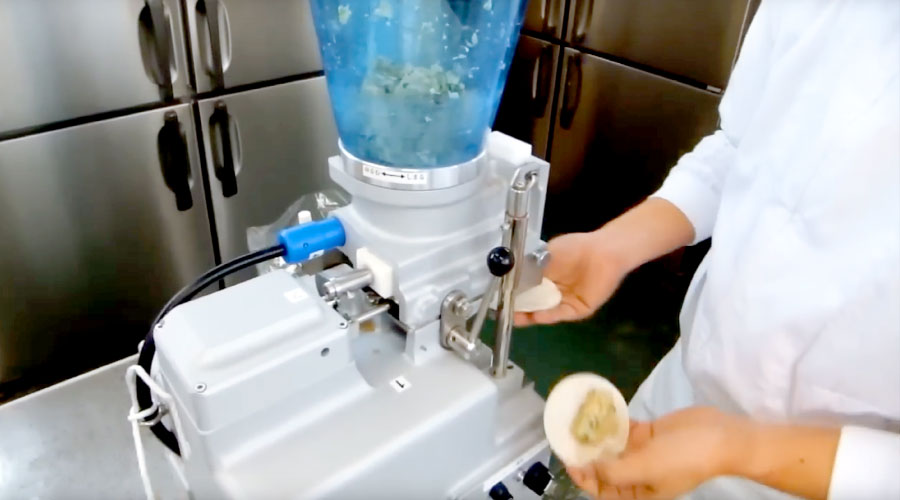

Precise dispensation of fixed volume of fillings.
Product Information
Outline

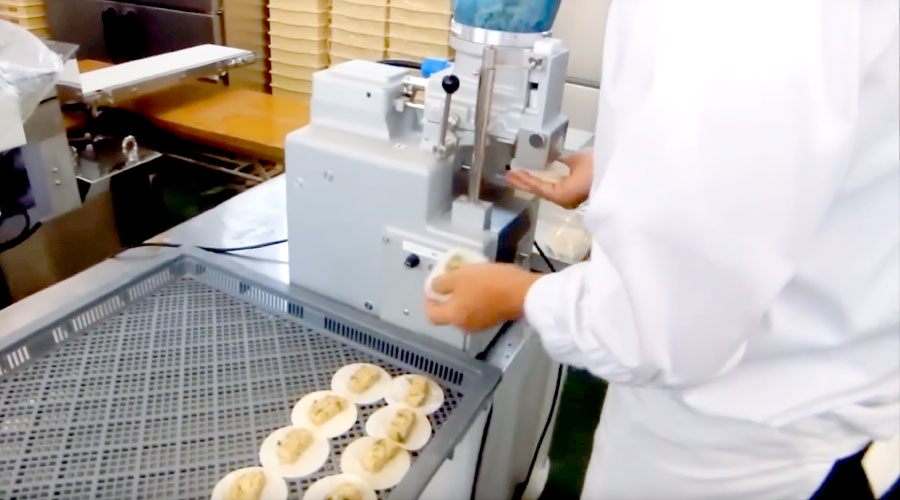

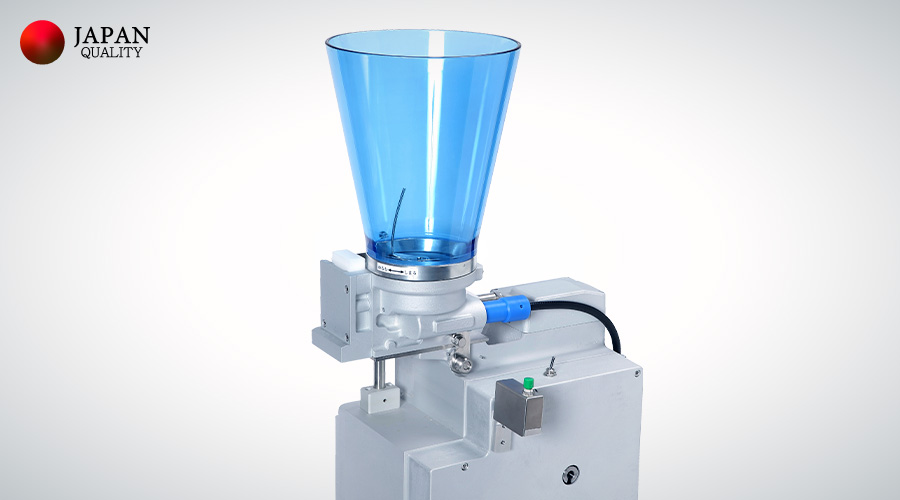

The Compact Dispenser, designed to fit into the corner of your kitchen, allows you to accurately dispense a fixed quantity of fillings with just the push of a button. It accommodates a wide range of ingredients, from meats and fish to paste fillings, making it ideal for producing gyoza, shumai, hamburgers, meatballs, and more. This eliminates the need for manual weighing, significantly improving productivity.
Despite its compact design, comparable to the size of a microwave, the machine can fill up to 2,000 pieces per hour. The major components are easily detachable, allowing for smooth cleaning. By changing the attachment unit, it can also handle varying weights.
Features
- Versatility The machine can accurately fill a variety of ingredients, including meat bun and shumai fillings.
- 2,000pcs/hr It can fill up to 2,000 pieces per hour (during continuous operation).
- Microwave-sized It is roughly the size of a microwave, saving space.
- Easy Operation Simple to use, allowing anyone to operate it.
- Easy Maintenance All major components can be easily detached and cleaned.
Specifications
| Product Name | Compact Dispenser |
|---|---|
| Model | MA-F-0722 |
| Capacity | 2000 pieces / hour (during continuous operation) |
| Dispense size | One size between 7g to 22g (second size is possible with added parts) |
| Air connection | not required |
| Power | 1 Phase 100V, 65W (Overseas voltage is possible) |
| Dimensions | 255mm x 343mm x 701mm (including hopper) |
| Weight | approx. 40kg |
